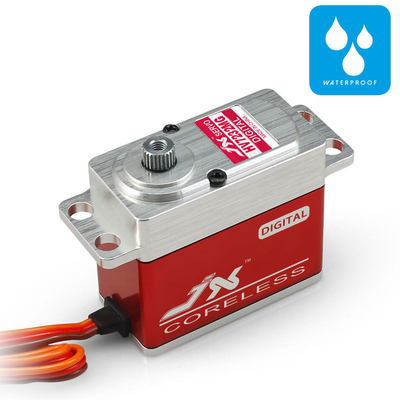

Digital Metal Gear JX Waterproof Servo PDI-HV7232MG 32KG Waterproof CNC Alu High Voltage Servo Robot Metal Gear Digital Servo Motor

JX Servo PDI-HV7232MG 32KG Waterproof Metal Gear CNC Alu High Voltage Digital Servo

JX Servo Technology have established a reputation for reliability and value. JX Servo produce servos for all applications from RC Modelling, UAV, Robotics to industrial applications. JX Servo offer an affordable solutions for all kinds of servo applications and are backed up with years of R&D and production development to ensure reliable quality servos are always delivered quickly.

FEATURE:
High performance digital high voltage coreless standard servo
High-precision Taiwan-made aluminum gears with hard anodizing
Full CNC aluminum Shell structure
Dual ball bearings
Waterproof

SPECIFICATIONS:
Dead band: 1μs 1520μs / 330hz
Motor: coreless motor
Operating Speed (6.0V): 0.12sec/60°
Operating Speed (8.4V): 0.09sec/60°
Stall Torque (6.0V): 26.2 kg.cm (363.83oz/in)
Stall Torque (8.4V): 31.5kg-cm 437.43 oz/in)
Dimensions:40.5X20.5X36mm/1.59X0.80X1.43in
Weight: 72g (2.54oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB

OEM & ODM services available.
We can customize travel angles such as 40/90/180/240/300 degree or any angle specific to your application. We can deliver servos with torque ranging from 2kg*cm to 700kg*cm and are able to create servos in any size or form factor you require. We have a wide variety of materials to choose from such as Nylon, Copper, Aluminum, Steel, Titanium and more. Travel speeds may also be customized on request and can be set anywhere from 0.03s to 0.5s to suit specific applications. We are also able to customize communication protocols such as TTL.RS232, i2C, RS485 or PWM. Voltage range are also customizable from 4.8v to 28v. We have a variety or motor options such as brushed, coreless and brushless and can also offer potentiometer control or magnetic induction control depending on your needs. For more advanced applications we can integrate position feedback, silent motor operation (gear train sound only). We are confident we can make any servo to suit any application. Our engineering team are up to the challenge and look forward to building a servo to suit your needs.

1. Electric lock (anti-heft door lock servo)
2. Luggage case lock servo
3. Washing machine safety mechanism servo
4. Water/gas valve control Servo
5. Smart lamp Switch Servo
6. Camera gimbal control servo
7. UAV heavy duty servo
8. Servo Release Servo Drop
9. Curtain Servo
10. Automatic Perfum dispenser
